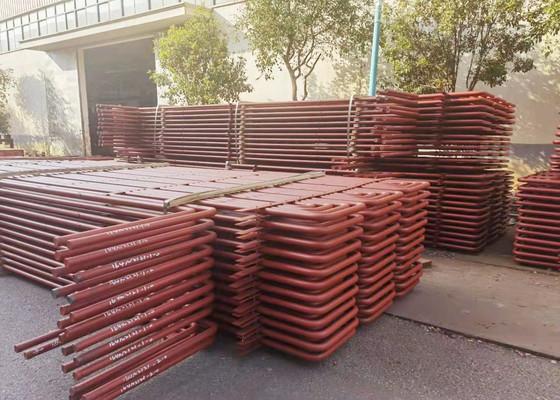

    Coal Fired CFB Boiler Superheater Coils In Steam Power Plant Carbon Steel

    Ask Lasest Price
    Brand Name : Saneco
    Certification : ASME, EN, GB, ISO
    Delivery Time : 80~120 days
    • Product Details
    • Company Profile

    Coal Fired CFB Boiler Superheater Coils In Steam Power Plant Carbon Steel

    Carbon Steel Superheater For Coal - Fired CFB Boilers in Chinese Standard


    Description

    For power plant boiler, it is a crutial way to increase thermal economy of thermal power station by improving parameter of superheated steam. The increase of superheated steam parameters are limited by metal materials. The design of superheaters must make sure that the temperature of outer wall of heating surface pipes is lower than allowable temperature of oxidation resistance of steel, and meanwhile make sure its mechanical strength. with the development of metal material used in boilers, power station boilers in our country already generally apply high pressure, high temperature(9.8MPa, 540 degrees) and superhigh pressure parameters(13.7 MPa, 540 and 555 degrees), and have developed subcritical pressure parameters(16.7MPa, 540 and 555 degrees). Now lots of boilers apply supercritical pressure parameters(24.5MPa, 540-570 degrees), and even very few units apply higher pressure and temperture parameters.


    Application


    use for heating saturated steam, steam temperature could be up to 900 degree C.

    Superheater Capacity Upgrades to Increase Power Generation


    Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.


    Differences


    TypeAdvantagesDisadvantagesSupporting method
    Pendant-type1.Firm structural support1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom.supported from above
    Inverted-type1.Proper drainage of the condensed steam1. Lack the structural rigidity, especially in high speed gas flowSupported from below
    Horizontal -type

    1. Proper drainage

    2. Good structural rigidity.

    1. They do not view the flam directly so they are mainly from the convective typeUsually supported in the vertical gas ducts parallel to the main furnace.
