The service and quality today will be the customer and credit tomorrow.
1 Years
| Ask Lasest Price | |
| Brand Name : | SANCO |
| Model Number : | Boiler Water Wall Panel |
| Certification : | ASME, ISO, GRADE A, EN |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 800tons/months |
| Delivery Time : | 100 working days |

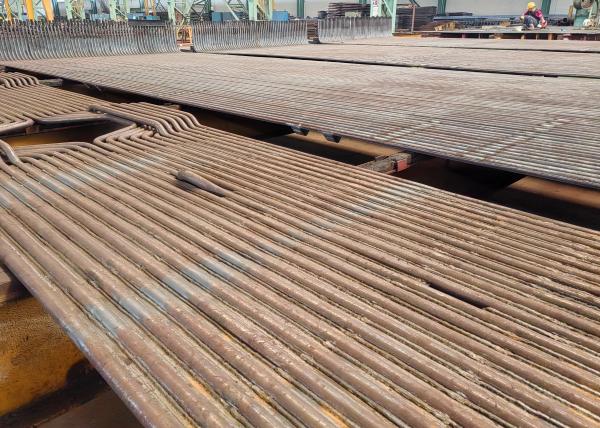

The boiler membrane wall, also known as the membrane water wall, is welded with pipes and flat steel to form a pipe screen, and then combined by multiple groups of pipe screens to form a membrane wall. The membrane water wall uses a diaphragm to separate the water pipes to form a water membrane screen, which improves the contact area between the water and the wall and improves the heat transfer efficiency. The diaphragm also protects the water pipes and extends the life of the wall radiator. In addition, the membrane water wall reduces the resistance to water flow and saves energy consumption for the pump.
According to the structural type, there are three main types: plain tube type, membrane type and squeaked tube type.
The plain tube water wall is composed of a whole row of seamless steel pipes, and their structure is the simplest; the membrane water wall weld many rolled water-cooled fin tubes together with spot welding, so that they become a sealed combined heating surface, which can not only improve the air tightness of the furnace, reduce air leakage, but also better protect the furnace wall, reduce the weight of the furnace wall, simplify the structure; the water wall of the spur tube is to weld many pins with a length of 20~25mm and a diameter of 6~12mm on the water-cooled wall tube, and then apply chrome ore refractory plastic in order to reduce the heat absorption of this part of the water wall and increase the temperature of the combustion zone, it is suitable for occasions where fuel ignition is particularly difficult or some liquid slag discharge furnaces.
According to the layout part, there are two kinds of attached wall type and partition wall type (i.e., double-sided heating) water cooling wall.
The former is mostly partially embedded in the inner wall of the furnace wall and absorbs heat on one side, while the latter is mostly installed in the middle of the furnace chamber of a large boiler, separating the whole furnace into two independent parts that are heated on both sides.
(1) Absorb the radiation heat of the high temperature flame or flue gas in the furnace, and heat the water into saturated steam;
(2) Protect the furnace wall, simplify the structure of the furnace wall, and reduce the weight of the furnace wall, mainly because the water wall absorbs the radiant heat in the furnace and reduces the temperature of the furnace wall;
(3) Absorb the heat in the furnace and cool the flue gas to the temperature allowed by the furnace outlet, which is beneficial to reduce the slag formation in the furnace and prevent the slag formation at the furnace outlet;
(4) The water wall absorbs radiant heat at high temperature in the furnace, and the heat transfer effect is good, so it can reduce the boiler steel consumption and the boiler cost.
Here are the frequently asked questions and answers about SANCO Boiler Menbrane Wall:
Q: What is SANCO Boiler Water Wall Panel?
A: SANCO Boiler Water Wall Panel is a type of boiler wall made of high-quality steel tubes and welded with fins to improve heat transfer efficiency.
Q: Where is SANCO Boiler Water Wall Panel made?
A: SANCO Boiler Water Wall Panel is made in China.
Q: What certifications does SANCO Boiler Water Wall Panel have?
A: SANCO Boiler Water Wall Panel is certified by ISO, ASME, and EN.
Q: What is the minimum order quantity for SANCO Boiler Water Wall Panel?
A: The minimum order quantity for SANCO Boiler Water Wall Panel is 3 tons.
Q: What are the payment terms for SANCO Boiler Water Wall Panel?
A: The payment terms for SANCO Boiler Water Wall Panel are negotiated.
Q: What is the supply ability of SANCO Boiler Water Wall Panel?
A: The supply ability of SANCO Boiler Water Wall Panel is 1500 ton/month.
Q: What is the price of SANCO Boiler Water Wall Panel?
A: The price of SANCO Boiler Water Wall Panel is negotiated.
Q: What are the packaging details for SANCO Boiler Water Wall Panel?
A: The packaging details for SANCO Boiler Water Wall Panel are customized.
Q: What is the delivery time for SANCO Boiler Water Wall Panel?
A: The delivery time for SANCO Boiler Water Wall Panell is 30 days.
|
|
