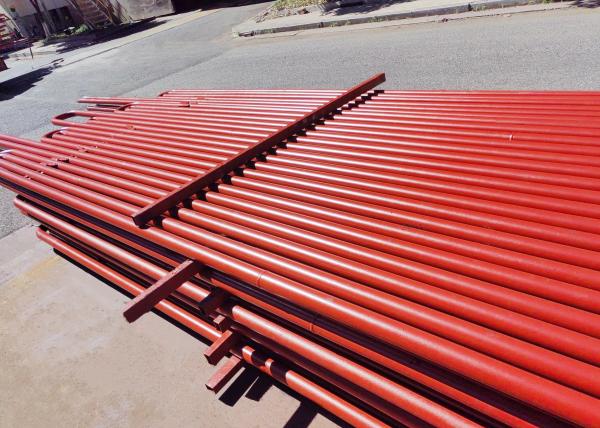

Carbon Steel Painted Superheater And Reheater For Various Boiler Systems
The structure of the serpentine tube screen, according to the device method in the boiler, is roughly divided into two types: vertical suspension type and horizontal suspension type. The vertical suspended serpentine pipe screen is generally a single-layer structure, mainly used in the high temperature section of the superheater and the reheater, and the end of the pipe screen is directly connected with the pipe joint of the header, which is hung and placed in the longitudinal direction of the header, and penetrates the roof of the furnace, and is sealed with it through the accessories on the pipe screen; Most of the horizontal suspended serpentine pipe screens are double-layer structures, and the middle is fixed and hung with water-cooled hanging pipes, which are generally used in the low-temperature section of the superheater and reheater and the economizer serpentine tube.
| Product Name | Steam Boiler Superheater Coils |
| Tube Material | SA192 |
| Coil Type | Serpentine Coils |
| Tube Diameter | 10-50 mm |
| Tube Thickness | Customized |
| Coil Length | Customized |
| Heat Transfer Area | Customized |
| Pressure Range | Customized |
| Temperature Range | Up to 1000°C |
| Application | Boiler |
| Warranty | 1 Year |
Our custom superheater coil is designed specifically for use in boilers and can be used to replace existing superheater coils in existing boilers, or designed and manufactured to fit into new boilers. Our superheater coil is designed to provide superior heat transfer performance and maximum durability in high-pressure and industrial applications.
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customized |
| Supply Ability | 500 ton per month |
| Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |
Product Packaging:
Shipping:
Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water
vapor in a boiler system and increase the temperature of the steam
produced by the boiler, used in various industries and provided by
reliable manufacturers in China.
Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable
quality.
Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such
as food production, pharmaceuticals, petrochemicals, power plants,
and other industries that require high-temperature steam.
Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and
stainless steel, ensuring a long service life and reliable
performance.
Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer
efficiency, and is easy to install and maintain.
|
|
