    ASME Certified Carbon Steel Water Tube Economiser For Steam Boilers

    Ask Lasest Price
    Brand Name : SANCO
    Model Number : Boiler Economizer
    Certification : ISO9001 , ASME, TUV,EN
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 Tons / Month
    Delivery Time : 30
    • Product Details
    • Company Profile

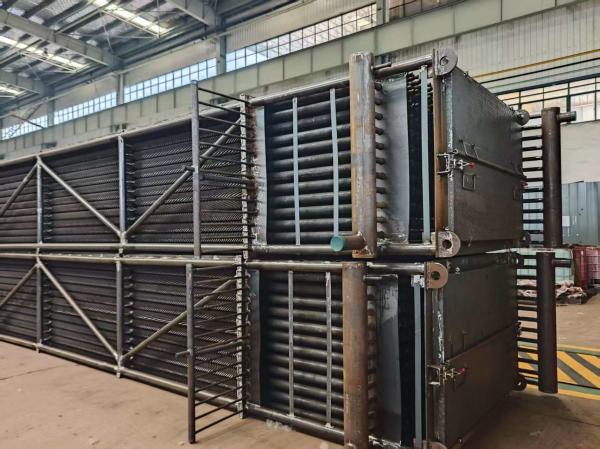

    ASME Certified Carbon Steel Water Tube Economiser For Steam Boilers

    ASME Certified Carbon Steel Water Tube Economiser For Steam Boilers


    What are the material requirements for economizer tubes?


    Low-temperature corrosion resistance (e.g., ND steel), erosion resistance (high-ash flue gas).


    Introduction


    Boiler economizers, as heat - exchange devices featuring finned tubes, serve to heat a liquid (frequently water). Their operation stops short of making the liquid reach a boiling state in most cases. Our manufacturing portfolio for boiler economizers covers three distinct types: the bare - tube economizer, the H - finned tube economizer, and the spiral finned - tube economizer. Among these, the H - finned tube economizer stands out as a high - efficiency heat - exchange tool. It gets its structure from H - finned tubes.



    Specifications


    DescriptionBoiler economizer
    MaterialAlloy steel, Carbon steel, SA210C ,SA213T22, etc.
    Material standardASTM, EN or ISO etc.
    DimensionCustomization
    Weight

    Min: 10 ton

    Max.:1000 ton

    Smelting Process:EF+LF + VD
    ProcessMaterial→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
    UT standardASTM A388 or EN10228, etc

    Function


    (1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.


    (2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption


    (3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.


    Technical specifications

    Material Structure
    Consists of a serious of spiral fin tubes, the headers of inlet and outlet, bend, frame and other auxiliaries.
    Structure Arrangement
    In line / staggered arrangement.


    Variety


    Utility Boiler Economizer

    1HDB produces economizers for utility boilers, which includes boilers fueled by coal, wood, oil, or other solid fuels to produce electricty from the boiler's high pressure steam.
    2These economizers are usually located in the back pass of the boiler and oriented with the tubes running horizontally.The boiler feedwater runs through the economizer circuits in the opposite direction of the gas flow (called counterflow).
    3Bare tubes are typically utilized in order to minimize ash fouling, but some boiler OEM's design their economizers with finned tubes, either spiral or long finned.
    4HDB can produce economizer elements with either bare, spiral finned, or long finned tubes, and if you prefer, re-design your unit to one of the other tube-types. HDB can also fabricate replacement headers for all utility boiler economizers.

    Package Boiler Economizer

    1HDB has unique manufacturing capabilities that the Optimus engineers take full advantage of when designing sulfuric acid plant economizers and superheaters.
    2Often this allows the Optimus units to be configured for higher heat transfer efficiencies which results in a reduced surface area requirement and, consequently, a lower-priced product.
    3HDB utilizes its on-site capabilities to fin and bend the tubes, machine and fabricate the headers, drill the tubesheets, cut and prep all casing materials, and perform all of the pressure part and casing welds.
    4This gives HDB more control of the manufacturing sequence and schedule which has helped us achieve a remarkable record of on-time delivery performance.

    HRSG Economizer

    1Economizers for today's HRSG modules are configured with fintubes that hang vertically. HDB has fabricated economizer coils for virtually all of the HRSG OEM companies and understands the unique features of each.
    2In many cases, utilities desire to upgrade their economizers from plain carbon steel to an alloy material to help resist flow accelerated corrosion (FAC) inside the headers and tube bends.
    3HDB is a one-stop shop for economizer fabrication because we prep all the materials and perform all of the pressure part and attachment welding, from finning the fintubes, fabricating the headers, and assembling the coil bundle.

    Manufacturing and acceptance criteria


    ·JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions"
    ·HG/T3181 "high-frequency resistance welding spiral fin tube"
    ·JB/T6511 "spiral finned tube test technical conditions."
    ·JB1611 "boiler tube mane box assembly conditions"
    ·JB/T1612 "boiler pressurufacturing conditions."
    ·JB16I3 "boiler pressure parts welding conditions."


    *Note:HD BOILER can bespoke special type of economizer according to customer's requirement.


    Internal heat exchangers


    1.Subcooling may also be produced by superheating the gas leaving the evaporator and heading to the gas compressor.

    2.These systems withdraw heat from the liquid line but heat up the gas compressors suction.

    3.This is a very common solution to insure that gas reaches the compressor and liquid reaches the valve.

    4.It also allows maximum heat exchanger use as minimizes the portion of the heat exchangers used to change the temperature of the fluid,and maximizeds the volume in which the refrigerant changes its phase.
