    Superheater And Reheater Customized Boiler Serpentine Tube High Pressure

    Ask Lasest Price
    Brand Name : SANCO
    Certification : ISO, ASME, EN
    Price : Negotiated
    Payment Terms : Negotiated
    Supply Ability : 1500 ton/month
    Delivery Time : 30
    • Product Details
    • Company Profile

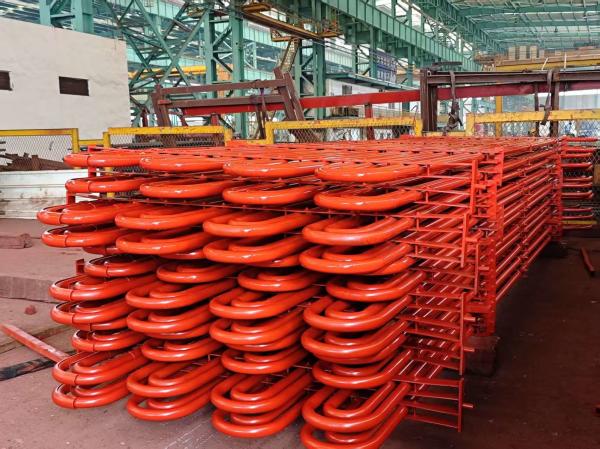

    Superheater And Reheater Customized Boiler Serpentine Tube High Pressure

    Superheater And Reheater Customized Boiler High Pressure Serpentine Tube


    What's the key to material selection?


    Both require high-temperature resistance. Superheaters use low-carbon steel and alloy steel; higher-grade alloy steel is used for high-temperature sections of reheaters.

    Product Description

    The boiler serpentine tube is a common type of boiler heat transfer components. The raw material of the boiler serpentine tube varies greatly in different temperature segments. For the superheaters and economizers in the low-temperature section, carbon steel, T1 or 15CrMo are generally used; For the superheater and reheater in the high-temperature section, 12Cr1MoV and imported steel SA-213T22 (referred to as T22), SA-213T91 (referred to as T91), SA-213TP304H (referred to as TP304H), SA213-TP347H (referred to as TP347H) and so on can be used.

    Reheater is actually a kind of steam superheater which heats the low-pressure steam after work and reaches a certain temperature. The role of reheater further improves the thermal efficiency of the circulation in power plant, and makes the steam temperature of the last stage blade of steam turbine controlled within the allowable range.

    Technical Parameters

    Product NameSteam Boiler Superheater Coils
    Tube MaterialSA192
    Coil TypeSerpentine Coils
    Tube Diameter10-50 mm
    Tube ThicknessCustomized
    Coil LengthCustomized
    Heat Transfer AreaCustomized
    Pressure RangeCustomized
    Temperature RangeUp to 1000°C
    ApplicationBoiler
    Warranty1 Year

    Feature

    • Product Name: Industrial Boiler Superheater Coils
    • Surface Treatment: Painted
    • Size: Customized
    • Heat Transfer Area: Customized
    • Application: Superheater Coils for Boiler
    • Pressure Range: Customized

    This product is specially designed for use in coal fired boilers. It is a durable and efficient solution for increasing the temperature and pressure of steam produced by the boiler. The industrial boiler superheater coils can be customized to meet the specific needs of your boiler system.


    Application

    DescriptionBoiler superheater
    MaterialAlloy steel, Carbon steel etc.
    Material StandardASTM, EN or ISO etc.
    Structure TypeTube Coil
    DimensionCustomized
    Supply Ability500 ton per month
    Manufacturing ProcessMaterial→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging
    Thermal EfficiencyAround 95%

    Packing and Shipping

    Product Packaging:

    • The superheater coils will be securely packed in wooden crates to ensure safe transportation.
    • The crates will be labeled with the product name, quantity, and any other necessary details.
    • We take great care in packaging our products to minimize any potential damage during shipping.

    Shipping:

    • We offer worldwide shipping for our superheater coils.
    • The shipping method and carrier will be determined based on the customer's preference and location.
    • Shipping costs will be calculated and included in the final invoice.
    • We strive to provide timely and efficient shipping to our customers.

    FAQ

    Q1: What is a Superheater Coil?
    A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.

    Q2: Where is Superheater Coil from?
    A2: Superheater Coil is manufactured in China with reliable quality.

    Q3: What industries use Superheater Coil?
    A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.

    Q4: What materials are used for Superheater Coil?
    A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.

    Q5: What is the advantage of Superheater Coil?
    A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
